Indexable Milling

ZCC-CT LNKT-GM-YBM253 indexable milling inserts for use with the ZCC-CT FMD03, FME04, FMP03 and EMP09 indexable face milling bodies.

APKT-APM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• APM chipbreaker is designed for medium machining
• APKT geometry insert

• Diameter range Ø40–250 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

ANGX-GM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• GM chipbreaker is designed for medium machining
• ANGX geometry insert

• Diameter range Ø63 – 160 mm
• For steel, stainless steel and cast iron
• Groove widths 4, 5, 6, 7, 8 mm

• Diameter range Ø12 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• For square shoulder milling, slot milling and ramping
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

• Diameter range 80mm to 315mm
• For steel, stainless steel and cast iron
• Milling cutter with positive, soft cutting geometry
• Wedge clamping

ZCC-CT APKT-PM-YBM253 indexable milling inserts for use with the ZCC-CT EMP01, EMP02, EMP03, HMP01 and QCH-APKT indexable face milling bodies.

ANGX-GM carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• GM chipbreaker is designed for medium machining
• ANGX geometry insert

• Diameter range Ø20–40 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

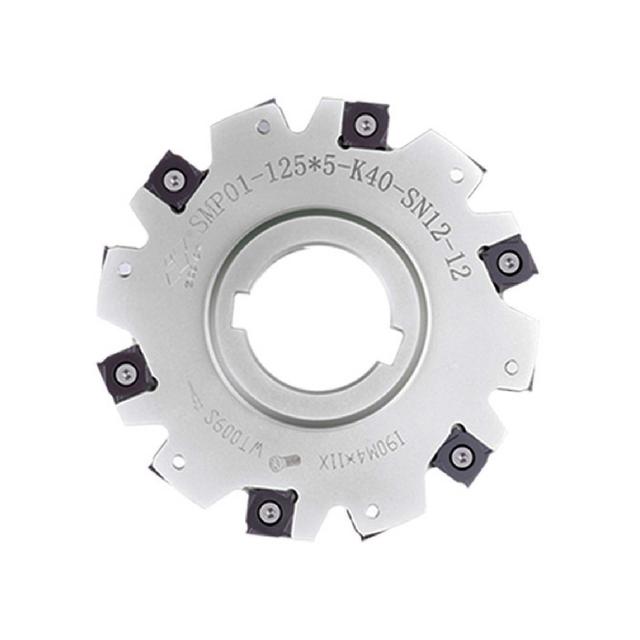

• Diameter range Ø100 – 250 mm
• For steel, stainless steel and cast iron
• Bore with keyway
• Groove widths 4, 5, 6, 7, 8 mm

SNEG-GM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• GM chipbreaker is designed for medium machining
• SNEG geometry insert

APKT-PM carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• PM chipbreaker is designed for medium machining
• APKT geometry insert

• 45 Degree milling cutter with positive, soft cutting geometry.
• Ideal for machining steel, stainless steel, cast iron and non ferrous materials.
• Diameter Range available from 50mm-315mm
• Wiper inserts available for excellent surface finish.

ZCC-CT ZOHX-GF-YBG252 indexable milling inserts for use with the ZCC-CT BMR04 and QCH-ZOHX indexable face milling bodies.

• Diameter range Ø21 – 60 mm
• For cast iron
• Groove widths 9, 11, 14, 18, 22, 28 mm

• Diameter range Ø16–40 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges
• For metric ISO threads according to DIN standard only

• Diameter range Ø40 – 125 mm
• Sharp cutting edge geometry combined with robust tangential inserts
• First choice for large cutting depths with high feed rates.
• Specially designed cutting edge with high precision control for high quality 90 degree square shoulder milling

• Diameter range Ø25 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• Screw clamping

ZCC-CT SEET-DM-YBM253 indexable milling inserts for use with the ZCC-CT FMA01, FMA02 and FMB02 indexable face milling bodies.

• Diameter range Ø12 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• For square shoulder milling, slot milling and ramping
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges
• Weldon shank

• Diameter range Ø25 – 40 mm
• For steel, cast iron and non-ferrous metals
• Double sided, thicker inserts for high stability and deeper cutting depths
• Inserts with four cutting edges

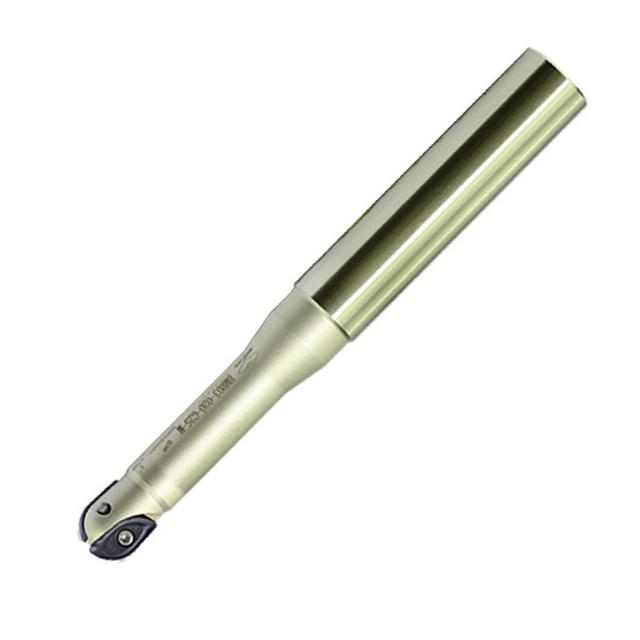

• Diameter range Ø16 – 40 mm
• For steel and cast iron
• Very suitable for roughing in mould and die industry
• Tool with high stability
