Milling Tools

FRANKEN Top-Cut 4 Flute Corner Radius High Performance End Mill

• Solid micrograin carbide
• TiALN coated
• Centre cutting
• Variable helix geometry
• Rough and finish with 1 tool
• Corner radius
• Several coerner radii per cutting diameter
• Suitable for steel, stainless steel, cast iron, titanium and HRSA

Alu-XP tools with Òmirror polishedÓ flutes allow for smooth chip evacuation, giving better surface finish and wear resistance. Cutting edges are optimised to minimise vibration, and 3-flute tools have a tight diameter tolerance giving excellent process reliability.

ZCC-CT HM-4R 4 Flute Corner Radius End Mill With Straight Shank

• Excellent tool design covers large chip pocket, good stability and machining efficiency
• Optimized cutting geometry (Rake angle) assures edge stabitlity and sharpness
• Ultra fine grain carbide
• KMG555 Nano-ALTiN coating base for hard machining at high temperatures
• For machining upto 68HRC

Pulsar Blue 4 Flute High Feed Corner Radius End Mill for Hardened Steel

• Premium nanograin carbide
• Suitable for dry cutting
• Suitable for machining upto 70HRC
• Corner radius
• High speed cutting
• High feed geometry
• Short flute for maximum strength

Alu-XP tools with Òmirror polishedÓ flutes allow for smooth chip evacuation, giving better surface finish and wear resistance. Cutting edges are optimised to minimise vibration, and 3-flute tools have a tight diameter tolerance giving excellent process reliability.

Pulsar Blue 4 Flute Extended Neck Corner Radius Stub Length End Mill for Hardened Steel

• Premium nanograin carbide
• Suitable for dry cutting
• Corner radius
• Suitable for machining upto 70HRC
• High speed cutting
• 30 degree helix
• Excellent workpiece finish

Pulsar Blue 4 Flute Extended Neck Corner Radius Long Length End Mill for Hardened Steel

• Premium nanograin carbide
• Suitable for dry cutting
• Corner radius
• Suitable for machining upto 70HRC
• High speed cutting
• 30 degree helix
• Excellent workpiece finish

Max-Mill Coated Carbide 2 Flute Corner Radius End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.

ZCC-CT UM-4R Series 4 Flute Standard Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

• Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch.
• Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting.
• End mills and torus Mills.
• HSC/HPC machining.
• AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

Pulsar Blue 4 Flute High Feed Long Length Corner Radius End Mill for Hardened Steel

• Premium nanograin carbide
• Suitable for dry cutting
• Suitable for machining upto 70HRC
• Corner radius
• High speed cutting
• High feed geometry
• Short flute for maximum strength

2 Flute Corner Radius Long Length End Mill for Aluminium

• Newly developed geometry
• New KMD401 diamond like coating for significantly improved tool life
• Wide range of radii available on larger diameters

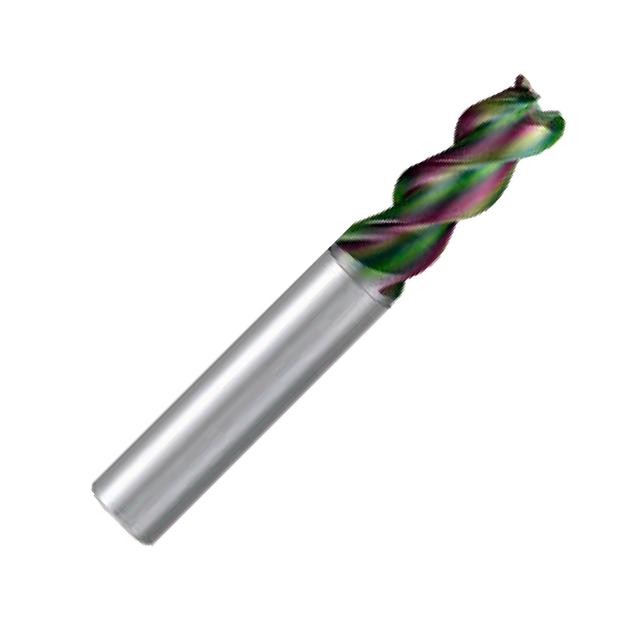

Franken Alu-Cut solid carbide 3 flute long length end mills for high performance machining of aluminium, wrought aluminium alloys and aluminium alloys with a silicon content of up to 7%.

Features:

• High performance tool.
• Special geometry for the machining of aluminium
• Centre cutting
• 3 Flute Ripper
• Several corner radii per cutting diameter
• Suitable for z-axis milling
• Suitable for roughing and finishing
• Low-vibration machining

Max-Mill Coated Carbide 4 Flute Corner Radius Long Length End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.

Max-Mill Coated Carbide 2 Flute Corner Radius Long Length End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.

ZCC-CT UM-4RL Series 4 Flute Long Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

• Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch.
• Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting.
• End mills and torus Mills.
• HSC/HPC machining.
• AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

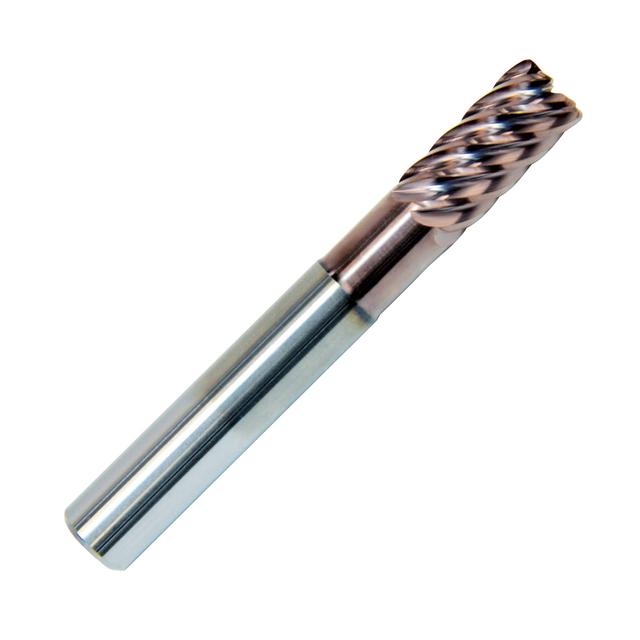

MasterMill VX5 175323 Series 5 Flute High Performance Corner Radius Ripper

• Solid micrograin carbide
• Fine pitch roughing end mill
• Corner radius
• Multi layer VX coated
• Variable helix geometry
• Suitable for high perfromance machining of Steel, Stainless steel, Titanium and nickel alloy
• Exceptional performance in Titanium, Inconel and other HRSA materials
• High rigidity of flute for heavy profiling and high speed machining
• Reinforced cutting edge

MasterMill VX6 176329 Series 6 Flute High Performance Corner Radius End Mill

• Solid micrograin carbide
• Optimised for high speed and trochoidal milling
• Corner radius
• Multi layer VX coated
• Variable helix geometry
• Suitable for high perfromance machining of Steel, Stainless steel, Titanium and nickel alloy
• Exceptional performance in Titanium, Inconel and other HRSA materials

ZCC-CT 4 Flute Reduced Neck Corner Radius End Mill

• Excellent tool design covers large chip pocket, good stability and machining efficiency
• Optimized cutting geometry (Rake angle) assures edge stabitlity and sharpness
• Ultra fine grain carbide
• KMG555 Nano-ALTiN coating base for hard machining at high temperatures
• For machining upto 68HRC

ZCC-CTÕs new TM range of high performance milling cutters for heat resistant super-alloys feature a revolutionary proprietary KMS405 coating for exceptional thermal stability and wear resistance.

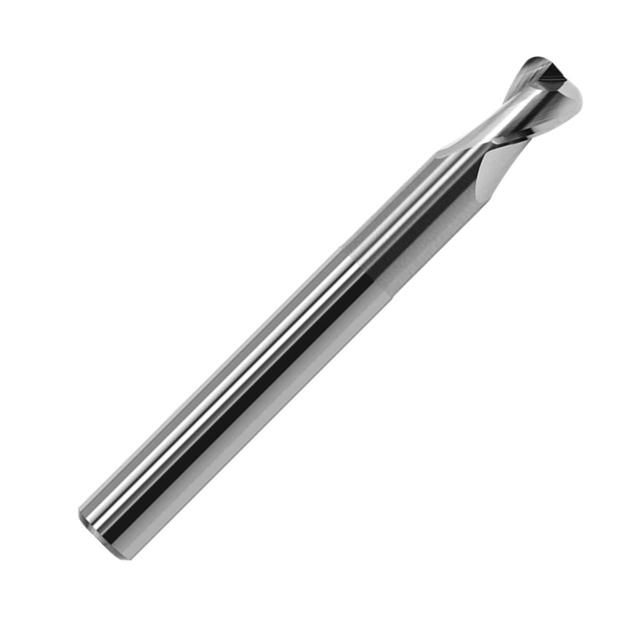

AL-2R 2 Flute Corner Radius End Mill for Aluminium

• Newly developed geometry
• New KMD401 diamond like coating for significantly improved tool life
• Wide range of radii available on larger diameters

ZCC-CTÕs new TM range of high performance milling cutters for heat resistant super-alloys feature a revolutionary proprietary KMS405 coating for exceptional thermal stability and wear resistance.
