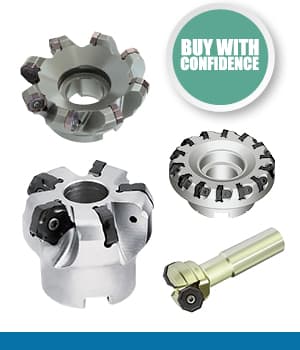

Indexable Face Milling Systems

• 45 Degree milling cutter with positive, soft cutting geometry.
• Ideal for machining steel, stainless steel, cast iron and non ferrous materials.
• Diameter Range available from 50mm-315mm
• Wiper inserts available for excellent surface finish

• 45 Degree milling cutter with positive, soft cutting geometry.
• Ideal for machining steel, stainless steel, cast iron and non ferrous materials.
• Diameter Range available from 50mm-315mm
• Wiper inserts available for excellent surface finish.

• Diameter range 80mm to 315mm
• For steel, stainless steel and cast iron
• Milling cutter with positive, soft cutting geometry
• Wedge clamping

• Diameter range Ø63 – 315 mm
• For steel, stainless steel and cast iron
• Inserts with eight cutting edges
• Double sided, thicker inserts for high stability and deeper cutting depths
• Wiper geometry for good surface quality
• Normal and fine pitch

• Diameter range Ø25 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• Screw clamping

• Diameter range Ø50 – 250 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• Screw clamping

• Diameter range Ø15 – 50 mm
• For steel, stainless steel and cast iron
• Screw clamping
• Mould and die industry

• Diameter range Ø15 – 50 mm
• For steel, stainless steel and cast iron
• Screw clamping
• Mould and die industry

• Diameter range Ø50 – 200 mm
• For steel, stainless steel and cast iron
• Screw clamping
• Mould and die industry

• Diameter range Ø42 – 200 mm
• For steel, stainless steel and cast iron
• Screw clamping
• Mould and die industry

• Diameter range Ø125 – 315 mm
• For steel, stainless steel, cast iron and non-ferrous metals
• Inserts with eight cutting edges
• Wedge clamping

SNEG-GM carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• GM chipbreaker is designed for medium machining
• SNEG geometry insert

SNEG-GM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• GM chipbreaker is designed for medium machining
• SNEG geometry insert

ZCC-CT RCKT-DM-YBC301 indexable milling inserts for use with the ZCC-CT FMR01 and FMR02 indexable face milling bodies.

ZCC-CT SEET-DM-YBM253 indexable milling inserts for use with the ZCC-CT FMA01, FMA02 and FMB02 indexable face milling bodies.

ZCC-CT RCKT-DR-YBC301 indexable milling inserts for use with the ZCC-CT FMR01 and FMR02 indexable face milling bodies.

SNEG-GM carbide milling insert

• Grade YB9320 is our best performing insert for general purpose milling including heat resistant alloys
• CVD coated
• GM chipbreaker is designed for medium machining
• SNEG geometry insert

ZCC-CT SEET-LH-YD101 indexable milling inserts for use with the ZCC-CT FMA01, FMA02 and FMB02 indexable face milling bodies.
