High Precision Indexable Square Shoulder Milling Systems

• Diameter range Ø12 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• For square shoulder milling, slot milling and ramping
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

• Diameter range Ø12 – 63 mm
• For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
• For square shoulder milling, slot milling and ramping
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges
• Weldon shank

• Diameter range Ø40–250 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

• Diameter range Ø25 – 40 mm
• For steel, cast iron and non-ferrous metals
• Double sided, thicker inserts for high stability and deeper cutting depths
• Inserts with four cutting edges

• Diameter range Ø40 – 250 mm
• For steel, cast iron and non-ferrous metals
• Double sided, thicker inserts for high stability and deeper cutting depths
• Inserts with four cutting edges

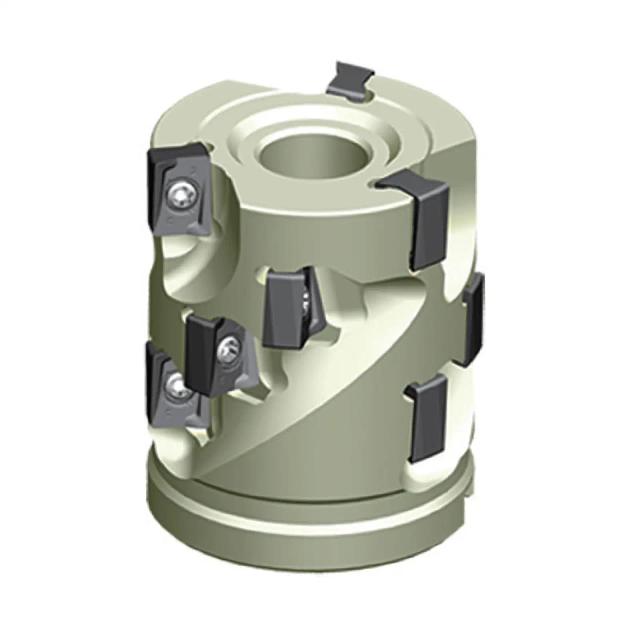

• Diameter range Ø40 – 125 mm
• Sharp cutting edge geometry combined with robust tangential inserts
• First choice for large cutting depths with high feed rates.
• Specially designed cutting edge with high precision control for high quality 90 degree square shoulder milling

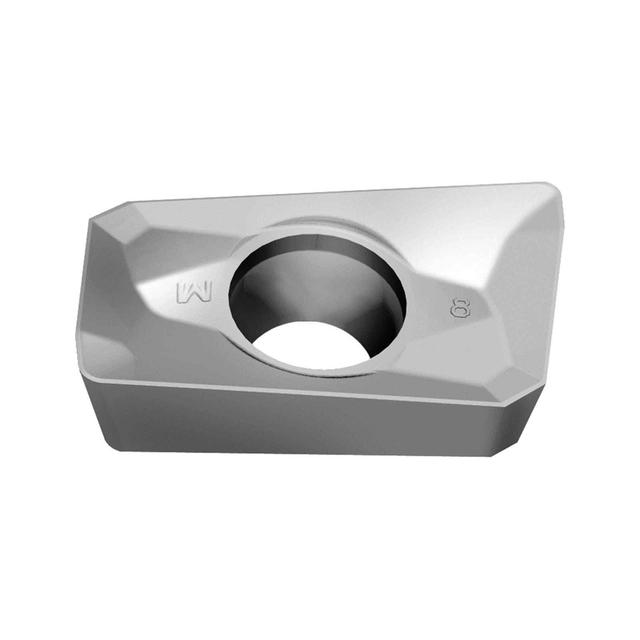

APKT-PF carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• PF chipbreaker is designed for finishing
• APKT geometry insert

APKT-PM carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• PM chipbreaker is designed for medium machining
• APKT geometry insert

APKT-APF carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• APF chipbreaker is designed for finishing
• APKT geometry insert

ANGX-GM carbide milling insert

• Grade YBC302 is our best performing insert for milling steel
• CVD coated
• GM chipbreaker is designed for medium machining
• ANGX geometry insert

• Diameter range Ø50–100 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

• Diameter range Ø20–40 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges

• Diameter range Ø50 – 80 mm
• For steel, cast iron and non-ferrous metals
• Double sided, thicker inserts for high stability and deeper cutting depths
• Inserts with four cutting edges

• Diameter range Ø25 – 40 mm
• For steel, cast iron and non-ferrous metals
• Double sided, thicker inserts for high stability and deeper cutting depths
• Inserts with four cutting edges

APKT-APM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• APM chipbreaker is designed for medium machining
• APKT geometry insert

APKT-APF carbide milling insert

• Grade YB9320 is our best performing insert for general purpose milling including heat resistant alloys
• CVD coated
• APF chipbreaker is designed for finishing
• APKT geometry insert

APKT-APM carbide milling insert

• Grade YB9320 is our best performing insert for general purpose milling including heat resistant alloys
• CVD coated
• APM chipbreaker is designed for medium machining
• APKT geometry insert

APKT-APM carbide milling insert

• Grade YBD152 is our best performing insert for milling cast iron
• CVD coated
• APM chipbreaker is designed for medium machining
• APKT geometry insert

APKT-ALH carbide milling insert

• Grade YD101 is our best performing insert for milling aluminium
• CVD coated
• ALH chipbreaker is designed for medium machining
• APKT geometry insert

ZCC-CT LNKT-GM-YBM253 indexable milling inserts for use with the ZCC-CT FMD03, FME04, FMP03 and EMP09 indexable face milling bodies.

ANGX-GM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• GM chipbreaker is designed for medium machining
• ANGX geometry insert

ANGX-GM carbide milling insert

• Grade YBG205 is our best performing insert for general purpose milling including heat resistant alloys
• CVD coated
• GM chipbreaker is designed for medium machining
• ANGX geometry insert

ANGX-LH carbide milling insert

• Grade YD101 is our best performing insert for milling aluminium
• CVD coated
• LH chipbreaker is designed for medium machining
• ANGX geometry insert
